icon Breakdown Dragger

Download ml_breakdownDragger.py

Revision 5
Last Update 2014-10-10
License MIT


Blend a keyframe or pose with the next or previous keys, essentially creating a breakdown pose that is weighted one way or the other. The weight of the blend is controlled by dragging the mouse in the viewport.


Copy this file into your maya scripts directory, for example:

C:/Documents and Settings/user/My Documents/maya/scripts/ml_breakdownDragger.py

Run the tool in a python shell or shelf button by importing the module, and then calling the primary function:

import ml_breakdownDragger


Run the tool, and the cursor will turn into a hand. Left-click and hold in the viewport, and then drag either left or right to weight the key to the next or previous key. Alternately, press and hold the middle mouse button to weight the key toward or away from the average of the surrounding keys. If you have no keys selectd, the tool will act only on curves that are visibile in the graph editor. If there are no keys at the current frame, keys will be set.


This script requires the ml_utilities module, which can be downloaded here: http://morganloomis.com/wiki/tools.html#ml_utilities

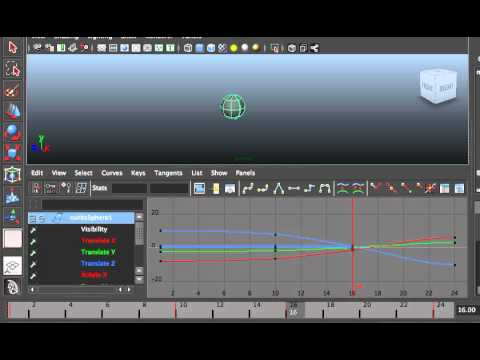

Video Tutorial


Revision History

Revision Date Note
1   First publish
4 2014-03-01 adding category
5 2014-10-10 Bug fixes
